Cyclone
We are Manufacturer, Supplier, Exporter of Cyclones ( Dust Collectors ) and our setup is situated in Ahmednagar, Maharashtra, India.

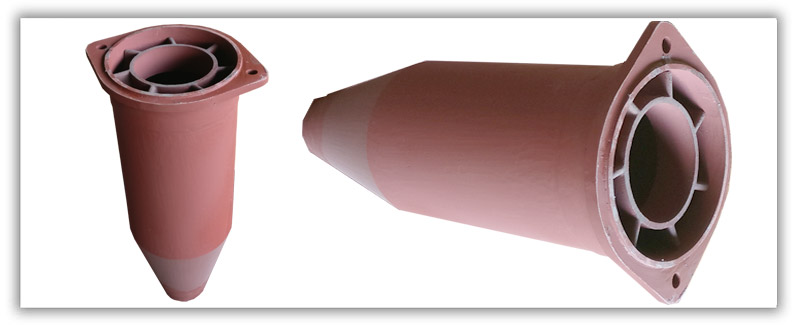

These cyclone cylinders are used in mechanical dust collectors. These casting are available in various compositions to match the flue gas temperature. The proper internal shape helps in better performance of the dust collections

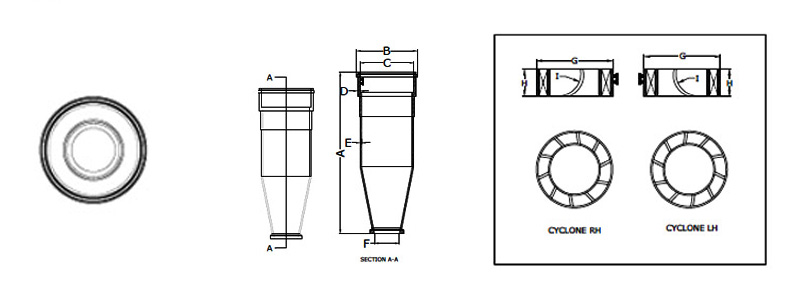

Material - WEAR RESISTANT Ni-HARD, CASTING WITH Min 500 BHN HARDENESS
| DIMENSIONS ARE IN - MM | |||||||||
| Size | A | B | C | D | E | ØF | G | ØH | I |
| C1 | 785 | 283 | 254 | 312 | 9 | 80 | 156 | 250 | 274 |

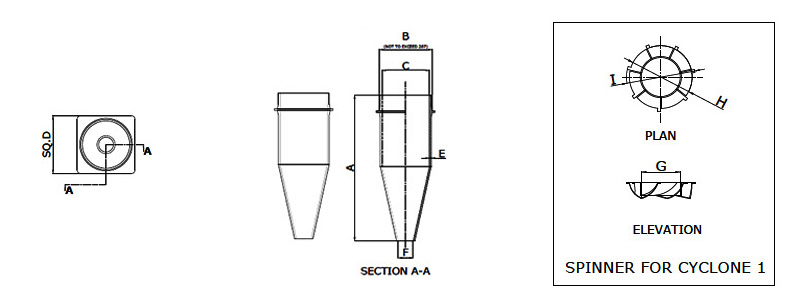

Material IS 210 Gr FG 220 TO 260 WITH Cr
| DIMENSIONS ARE IN MM | |||||||||
| Size | A | B | C | D | E | F | G | ØH | I |
| C2 | 800 | 300 | 280 | 12 | 8 | 122 | 260 | 90 | R75 |

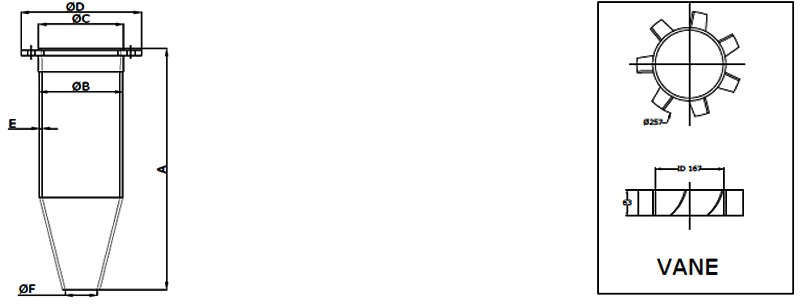

Material - IS 3355 Gr 2A
| DIMENSIONS ARE IN MM | |||||||||
| Size | A | B | C | D | E | ØF | G | ØH | I |
| C2 | 798 | 276 | 280 | 398 | 9 | 106 | 315 | 330 | 25 |
